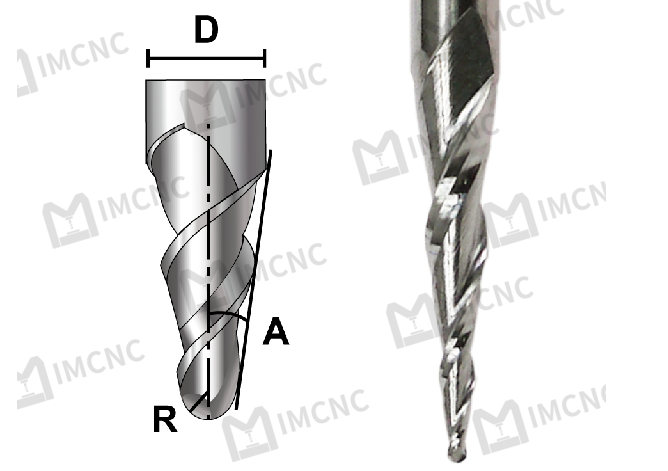

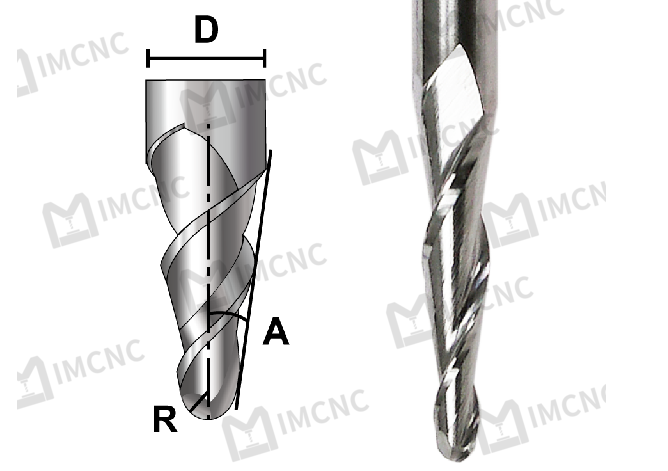

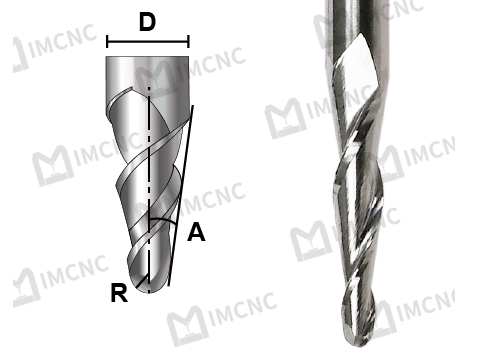

Tapered Ball Tip Solid Carbide CNC Bit
- CNC Router Toolbits
Item:
Item
Quantity:
Choose options
- CNC Router Toolbits
Item:
Item
Quantity:
- CNC Router Toolbits
Item:
Item
Quantity:
Shank Dia. : 4mm
4025C150 0.25R Tapered Ball Tip Solid Carbide CNC Bit
4050C150 0.50R Tapered Ball Tip Solid Carbide CNC Bit
4100C150 1.00R Tapered Ball Tip Solid Carbide CNC Bit
Shank Dia. : 6 mm
6025C300 0.25R Tapered Ball Tip Solid Carbide CNC Bit
6050C300 0.50R Tapered Ball Tip Solid Carbide CNC Bit
6100C300 1.00R Tapered Ball Tip Solid Carbide CNC Bit
6150C300 1.50R Tapered Ball Tip Solid Carbide CNC Bit
Features:
- Tapered ball tip offers exceptional detail relief on wood, plastic, acrylic and artificial stone.
- Suitable for deep relief carving due to the flute length longer.
- Made from Solid Tungsten Carbide, which provides longer cutting life. State-of-the-art cutter geometries designed for better chip evacuation.
- 4 mm and 6 mm tool shank fits perfectly on IMCNC engraver model.
Engraving Materials:
Plastics(ABS, Acrylic), Wood, MDF, Rubber, Leather, Foam, Styrofoam, Modeling Wax, Epoxy, Artificial Stone etc.
Specification:
|
|
| Item Number | 4025C150 |
| Radius (R) | 0.25 mm |
| Shank Dia. (D) | 4 mm |
| Flute Length (H) | 15 mm |
| Overall Length (L) | 50 mm |
| Flute Number | 2 |
| Angle (A) | 6° |
| Engraving Materials | ABS, Acrylic, Wood, MDF, Rubber Leather, Foam, Styrofoam, Modeling Wax, Epoxy….etc. |
| Item Number | 4050C150 |
| Radius (R) | 0.5 mm |
| Shank Dia. (D) | 4 mm |
| Flute Length (H) | 15 mm |
| Overall Length (L) | 50 mm |
| Flute Number | 2 |
| Angle (A) | 5.5° |
| Engraving Materials | ABS, Acrylic, Wood, MDF, Rubber Leather, Foam, Styrofoam, Modeling Wax, Epoxy….etc. |
| Item Number | 4100C150 |
| Radius (R) | 1 mm |
| Shank Dia. (D) | 4 mm |
| Flute Length (H) | 15 mm |
| Overall Length (L) | 50 mm |
| Flute Number | 2 |
| Angle (A) | 4° |
| Engraving Materials | ABS, Acrylic, Wood, MDF, Rubber Leather, Foam, Styrofoam, Modeling Wax, Epoxy….etc. |
| Item Number | 6025C300 |
| Radius (R) | 0.25 mm |
| Shank Dia. (D) | 6 mm |
| Flute Length (H) | 30 mm |
| Overall Length (L) | 75 mm |
| Flute Number | 2 |
| Angle (A) | 5.19° |
| Engraving Materials | ABS, Acrylic, Wood, MDF, Rubber Leather, Foam, Styrofoam, Modeling Wax, Epoxy….etc. |
| Item Number | 6050C300 |
| Radius (R) | 0.5 mm |
| Shank Dia. (D) | 6 mm |
| Flute Length (H) | 30 mm |
| Overall Length (L) | 75 mm |
| Flute Number | 2 |
| Angle (A) | 4.75° |
| Engraving Materials | ABS, Acrylic, Wood, MDF, Rubber Leather, Foam, Styrofoam, Modeling Wax, Epoxy….etc. |
| Item Number | 6100C300 |
| Radius (R) | 1 mm |
| Shank Dia. (D) | 6 mm |
| Flute Length (H) | 30 mm |
| Overall Length (L) | 75 mm |
| Flute Number | 2 |
| Angle (A) | 3.88° |
| Engraving Materials | ABS, Acrylic, Wood, MDF, Rubber Leather, Foam, Styrofoam, Modeling Wax, Epoxy….etc. |
| Item Number | 6150C300 |
| Radius (R) | 1.5 mm |
| Shank Dia. (D) | 6 mm |
| Flute Length (H) | 30 mm |
| Overall Length (L) | 75 mm |
| Flute Number | 2 |
| Angle (A) | 2.85° |
| Engraving Materials | ABS, Acrylic, Wood, MDF, Rubber Leather, Foam, Styrofoam, Modeling Wax, Epoxy….etc. |
