IMCNC BE3000/3030
- Compact Power: Small CNC engraver for hobbyists and workshops.
- Great for Learning: Perfect for those new to DIY woodworking and CNC machining.
- Efficient Design: Easy to use with strong performance for any project.
Module
Vectric VCarve Software
Choose options
- Compact Power: Small CNC engraver for hobbyists and workshops.
- Great for Learning: Perfect for those new to DIY woodworking and CNC machining.
- Efficient Design: Easy to use with strong performance for any project.
Module
Vectric VCarve Software
- Compact Power: Small CNC engraver for hobbyists and workshops.
- Great for Learning: Perfect for those new to DIY woodworking and CNC machining.
- Efficient Design: Easy to use with strong performance for any project.
Module
Vectric VCarve Software

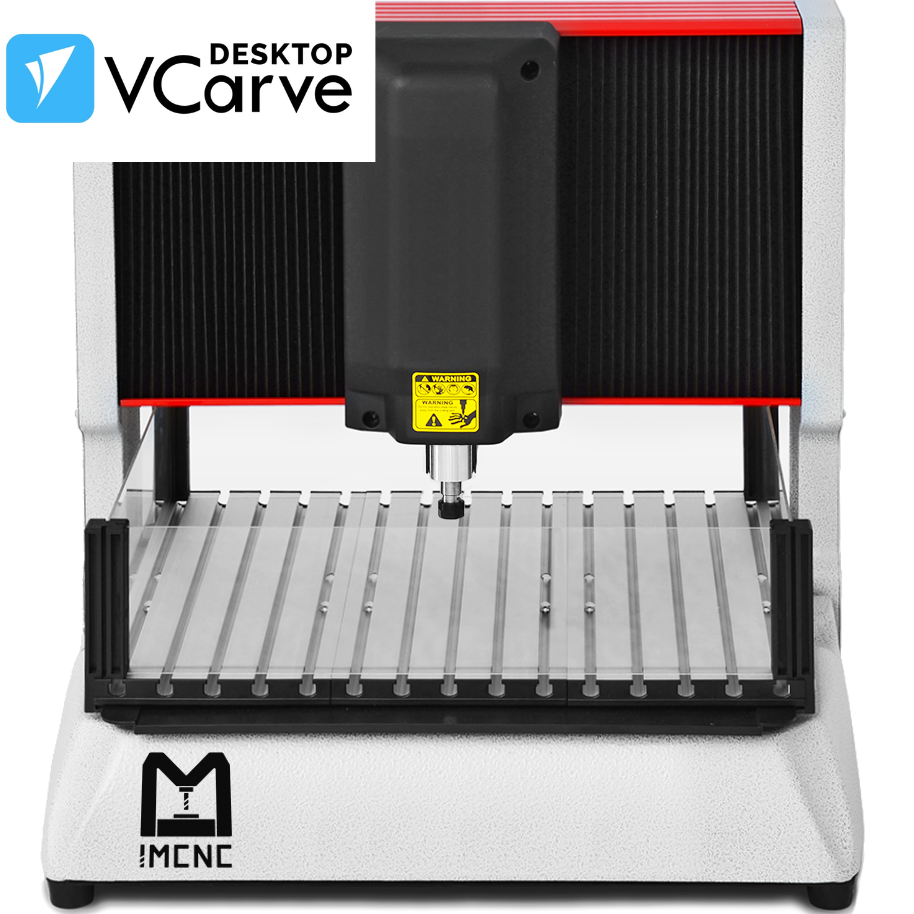

Your Ideal CNC Engraver for Start-ups and Studios!
The BE3000 (BE3030) is the perfect CNC engraver for education and training. It helps teachers create engaging lessons and activities in science, technology, engineering, and math (STEM). Whether for elementary students or university learners, this engraver is designed to foster problem-solving skills and creativity. It’s an excellent choice for educational programs, vocational schools, and CNC competitions.
Small Business or Etsy Business
Whether you're making molds, dies, or personalized design products, the BE3000 CNC engraver makes it easy to bring your ideas to life. By creating unique pieces, you can significantly increase the value of your original products. Start your own business with IMCNC today!
Optional Stand / Working Table Set
Our optional CNC Stand / Working Table for BE3000 boasts a robust construction to provide a stable base. Equipped with rubber-layered feet for vibration reduction, it ensures a sturdy foundation for your CNC operations.
BE3000-Specification
| Model | BE3000 |
| Table Size | X 450 x Y 440 mm |
| Max. Table Load Weight | 5 kgs |
| Engraving Area | X 300 x Y 300 x Z 100 mm |
| Max.Engraving Speed | 2500 mm/min |
| Engraving Material | Plastic ( ABS, Acrylic ), Wood, Foam, Styrene foam, Modeling Wax, |
| Epoxy Tooling Board...etc | |
| Software Resolution | 0.02 mm |
| Mechanical Resolution | 0.02mm |
| Spindle Motor | 200W Brushless DC Motor |
| Spindle Speed | Maximum spindle speed is 20,000 RPM. |
| The spindle speed is adjustable. | |
| Tool Diameter | ER11 Collet: 3, 4, 6 mm |
| Interface | USB |
| Power Supply and Power Consumption |
- 100~120V 50/60HZ Output: DC24V 8.8 A Power Consumption: 4.0A |
| - 200~240V 50/60HZ Output: DC24V 8.8 A Power Consumption: 2.0A | |
| Machine Size | 540 x 530 x 530 mm |
| Net Weight | 32.50 kgs |
Here are items included with BE3000 engraver.
| Item | Q'ty | |
| 1 | Power Cord | 1 |
| 2 | USB 2.0 Cable | 1 |
| 3 | Controller ( gamepad ) | 1 |
| 4 | Wrench Set | 1 Set |
| 5 | Silicone Mat | 1 |
| 6 | Support board | 1 |
| 7 | Standard Clamp Set | 1 Set |
| 8 | BravoProdigy EZCarve Software | 1 |
| 9 | BravoProdigy CNC Software | 1 |
| 10 | Touch Plate | 1 |
| 11 | Fuse | 2 |
| 12 | ER-11 Collet Chuck Set (assembled in the engraver) | 1 |
| 13 | ER-11 Collet (3mm/4mm/6mm per piece) | 1 per size |
| 14 | Bit Set ( 9 pcs in total as below ) | 1 Set |
| 4025A020 0.25R Fine Detail Solid Carbide CNC Bit | ||
| 4050A020 0.50R Fine Detail Solid Carbide CNC Bit | ||
| 4050C150 0.50R Tapered Ball Tip Solid Carbide CNC Bit | ||
| 4250B120 2.5 mm Spiral Plunge Solid Carbide Bit | ||
| 4400B150 4.0 mm Spiral Plunge Solid Carbide Bit | ||
| 4100G040 1 mm Single Flute Straight Plunge Solid Carbide CNC Bit | ||
| 4400H150 4 mm Double Flute Straight Plunge Solid Carbide CNC Bit | ||
| 4635V030 30° V-Groove Carbide CNC Bits | ||
| 4100E150 1.0R Half-Conical Solid Carbide CNC Bit | ||
| 15 | IMCNC 2-year Limited Warranty | |
