Spiral Plunge Solid Carbide Bit

4250B120      2.5 mm Spiral Plunge Solid Carbide Bit
4400B150      4.0 mm Spiral Plunge Solid Carbide Bit

Features:

• Ideal for soft metal, wood and plastic. Suitable for getting rid of large scale of material, milling, cutting, drilling and roughing toolpath.
• The spiral solid carbide bit is designed to reduce tool marks which is commonly appearing when carving with plastic.
• Spiral design for fast and clean chip removal. The sharp cutting edge provides a smooth cutting experience.
• Made from Solid Tungsten Carbide, providing a longer cutting life. State-of-the-art cutter geometries designed for better chip evacuation.
• 4 mm tool shank fits perfectly on IMCNC engraver model.

Engraving Materials:

Plastics(ABS, Acrylic), Wood, MDF, Rubber, Leather, Artificial Stone, Circuit Board, Foam, Styrofoam, Modeling Wax, Epoxy, Soft Metals(Aluminum, Silver, Copper, Tin), etc.

Specification:

Bits Comparison

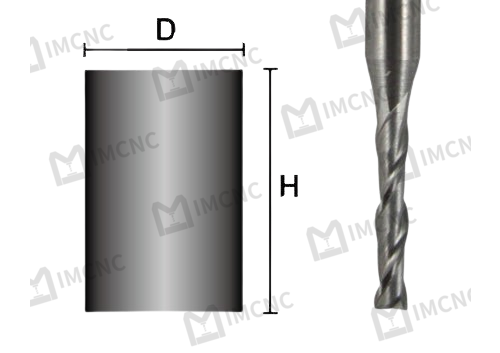

	Item Number 4250B120 Diameter (d) 2.50 mm Shank Dia. (D) 4 mm Flute Length (H) 12 mm Overall Length (L) 50 mm Flute Number 2 Engraving Materials ABS, Acrylic, Wood, MDF, Rubber, Leather, Artificial Stone, Circuit Board, Foam, Styrofoam, Modeling Wax, Epoxy, Soft Metal (Aluminum, Silver, Cooper, Tin)
	Item Number 4400B150 Diameter (d) 4.00 mm Shank Dia. (D) 4 mm Flute Length (H) 15 mm Overall Length (L) 50 mm Flute Number 2 Engraving Materials ABS, Acrylic, Wood, Foam, Styrofoam, Modeling Wax, Epoxy, Soft Metal (Aluminum, Silver, Cooper, Tin)..etc.
