Fine Detail Solid Carbide CNC Bit
Fine Detail Solid Carbide CNC Bit

IMCNC

Fine Detail Solid Carbide CNC Bit

$20.00 USD
Unit price does not include freight, import tax, VAT., and duty. Check the H.S. Code with local customs and estimate the tax and duty rate. Only purchase if you accept the cost.
H.S. CODE
Item:4025A020
Quantity:

  • Ensure you are familiar with our Shipping and Returns/Refunds policies prior to purchasing.

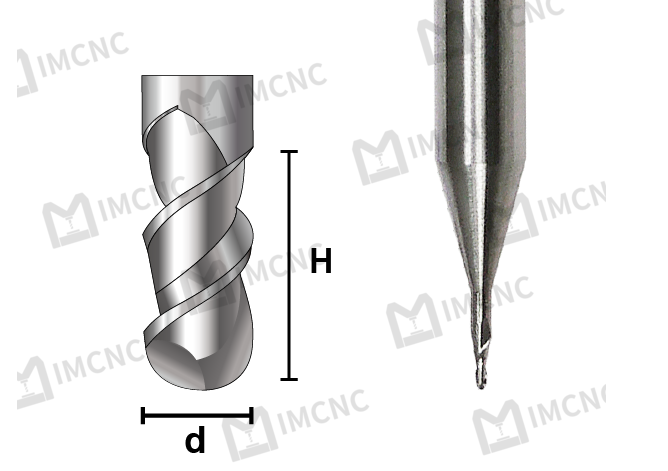

4025A020         0.25R Fine Detail Solid Carbide CNC Bit

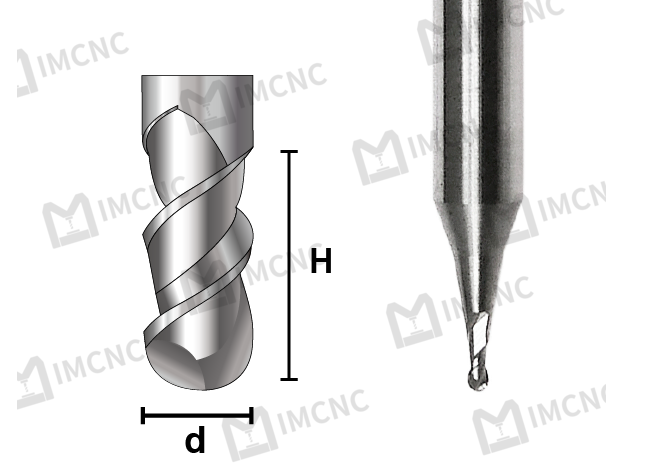

4050A020         0.50R Fine Detail Solid Carbide CNC Bit

Features:

  • Exclusively designed for intricate photo relief engraving and being able to provide a vivid-like 3D illusion.
  • Ideal for shallower carving. It is not suitable for deep carving since flute length is only 2 mm.
  • Made from Solid Tungsten Carbide, which provides longer cutting life. State-of-the-art cutter geometries designed for better chip evacuation.
  • 4 mm tool shank fits perfectly on IMCNC engraver model.



Engraving Materials:

Plastics(ABS, Acrylic), Wood, MDF, Rubber, Leather, Foam, Styrofoam, Modeling Wax, Epoxy, etc.

Application:

　

　
(Left) After Engraving   (Right) Against the light
Photo Engrave White Acrylic
*Photo Credit :
Photo by Magdalena Smolnicka on unsplash.com. If there is any violation in using this photo, please advise us and we will remove this photo immediately.
　



　
(Left) After Engraving (Right) Flip Over to Observe ( put white paper under the acrylic)
Photo Engrave Brown Acrylic
*Photo Credit :
Photo by Isaac Quesada on unsplash.com. If there is any violation in using this photo, please advise us and we will remove this photo immediately.
　



　
Fine Letter on Plastic.
　
Wood.


Specification:

Bits Comparison

Item Number

4025A020

Diameter (d)

0.50 mm

Shank Dia. (D)

4 mm

Flute Length (H)

2.00 mm

Overall Length (L)

50 mm

Flute Number

2

Engraving Materials

It is mainly used for shallow engraving of photos on white or brown acrylic materials. It is not suitable for deep carving since the length and height of the bit very short.


Item Number

4050A020

Diameter (d)

1.00 mm

Shank Dia. (D)

4 mm

Flute Length (H)

2.00 mm

Overall Length (L)

50 mm

Flute Number

2

Engraving Materials

It is mainly used for shallow engraving of photos on white or brown acrylic materials. It is not suitable for deep carving since the length and height of the bit very short.
