Half-Conical Solid Carbide CNC Bit
Half-Conical Solid Carbide CNC Bit
Half-Conical Solid Carbide CNC Bit

IMCNC

Half-Conical Solid Carbide CNC Bit

$20.00 USD
Unit price does not include freight, import tax, VAT., and duty. Check the H.S. Code with local customs and estimate the tax and duty rate. Only purchase if you accept the cost.
H.S. CODE
Item:4050E150
Quantity:

  • Ensure you are familiar with our Shipping and Returns/Refunds policies prior to purchasing.

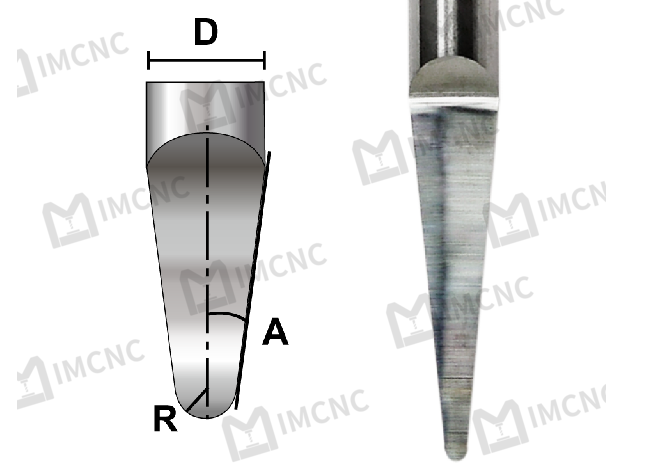

4050E150      0.5R Half-Conical Solid Carbide CNC Bit

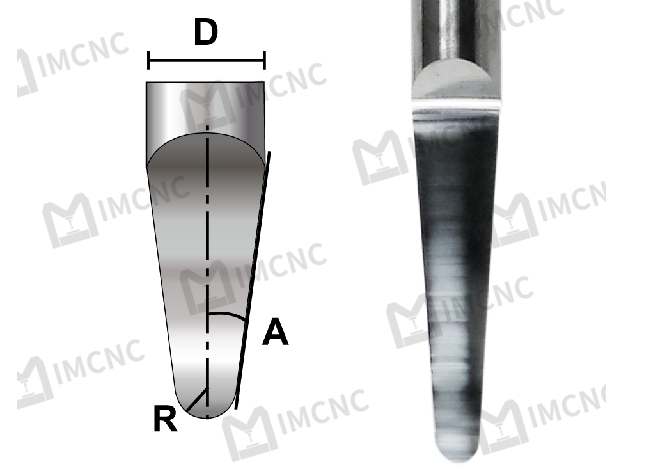

4100E150      1.0R Half-Conical Solid Carbide CNC Bit

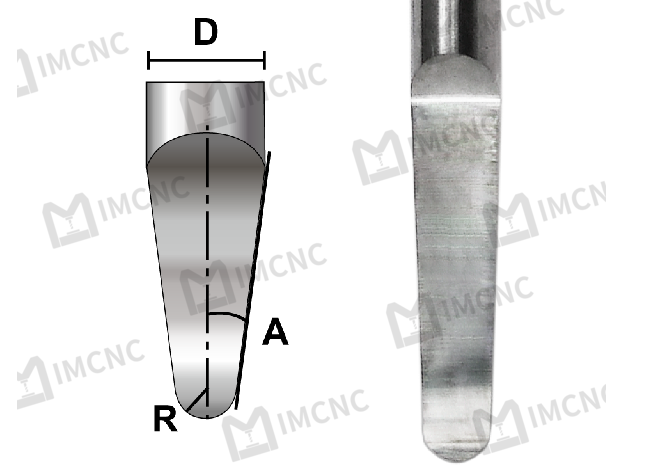

4150E150      1.5R Half-Conical Solid Carbide CNC Bit

Features:

  • Specially design for wood carving.
  • Half conical offers sharp cut and avoid creating larger debris.
  • Made from Solid Tungsten Carbide, which provides longer cutting life. State-of-the-art cutter geometries designed for better chip evacuation.
  • 4 mm tool shank fits perfectly on IMCNC engraver model.

Engraving Materials:

Wood, Foam, Styrofoam, MDF, Epoxy, etc.

Specification:

Bits Comparison

Item Number

4050E150

Radius (r)

0.50mm

Shank Dia. (D)

4 mm

Flute Length (H)

15 mm

Overall Length (L)

50 mm

Flute Number

1

Angle (A)

5.5°

Engraving Materials

Wood, Foam, Styrofoam, MDF, Epoxy, etc.

Item Number

4100E150

Radius (r)

1.00mm

Shank Dia. (D)

4 mm

Flute Length (H)

15 mm

Overall Length (L)

50 mm

Flute Number

1

Angle (A)

4°

Engraving Materials

Wood, Foam, Styrofoam, MDF, Epoxy, etc.


Item Number

4150E150

Radius (r)

1.50mm

Shank Dia. (D)

4 mm

Flute Length (H)

15 mm

Overall Length (L)

50 mm

Flute Number

1

Angle (A)

2°

Engraving Materials

Wood, Foam, Styrofoam, MDF, Epoxy, etc.
