V-Groove Carbide CNC Bits

4635V030     30° V-Groove Carbide CNC Bits

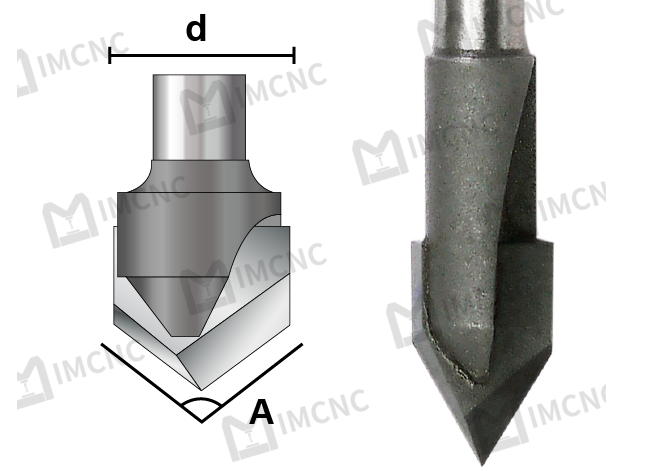

4635V060     60° V-Groove Carbide CNC Bits

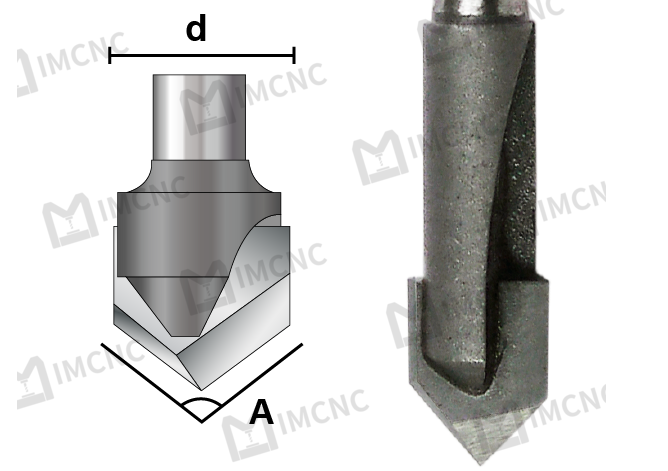

4635V090     90° V-Groove Carbide CNC Bits

Features:

• A v-groove router bit is excellent for making signs and create stunning lettering carving.
• Engineered to tackle cutting challenges posed by materials such as wood, styrofoam, MDF and Epoxy.
• Designed for the most demanding engraving and lettering tasks, carving extremely fine detail even in deep carvings, createing one-of-a-kind pattern.
• If you wish to carve deeper pattern, we recommend you to use 30° V-Groove Carbide CNC Bits on your design.
• Made from Solid Tungsten Carbide, providing longer cutting life. State-of-the-art cutter geometries designed for better chip evacuation.
• 4 mm tool shank fits perfectly on IMCNC engraver model

Engraving Materials:

Wood, MDF, Styrofoam, Epoxy, etc.

Application:

Specification:

Bits Comparison

	Item Number 4635V030 Diameter (d) 6.35 mm Shank Dia. (D) 4 mm Flute Length (H) 11.85 mm Overall Length (L) 50 mm Flute Number 2 Angle (A) 30° Engraving Materials Wood, Plastic, Acrylic, Artificial Stone…etc.
	Item Number 4635V060 Diameter (d) 6.35 mm Shank Dia. (D) 4 mm Flute Length (H) 5.5 mm Overall Length (L) 50 mm Flute Number 2 Angle (A) 60° Engraving Materials Wood, Plastic, Acrylic, Artificial Stone…etc.
	Item Number 4635V090 Diameter (d) 6.35mm Shank Dia. (D) 4 mm Flute Length (H) 3.175 mm Overall Length (L) 50 mm Flute Number 2 Angle (A) 90° Engraving Materials Wood, Plastic, Acrylic, Artificial Stone…etc.
