IMCNC
BC100
The Simplest mini CNC Engraver
Best entry-level mini CNC engraver for everyone. Perfect engraver for educational institutions from elementary school to university.
Unit price does not include freight, import tax, VAT., and duty. Check the H.S. Code with local customs and estimate the tax and duty rate. Only purchase if you accept the cost.
Ensure you are familiar with our Shipping and Returns/Refunds policies prior to purchasing.
Choose options
The Simplest mini CNC Engraver
Best entry-level mini CNC engraver for everyone. Perfect engraver for educational institutions from elementary school to university.
Unit price does not include freight, import tax, VAT., and duty. Check the H.S. Code with local customs and estimate the tax and duty rate. Only purchase if you accept the cost.
Ensure you are familiar with our Shipping and Returns/Refunds policies prior to purchasing.
The Simplest mini CNC Engraver
Best entry-level mini CNC engraver for everyone. Perfect engraver for educational institutions from elementary school to university.
Unit price does not include freight, import tax, VAT., and duty. Check the H.S. Code with local customs and estimate the tax and duty rate. Only purchase if you accept the cost.
Ensure you are familiar with our Shipping and Returns/Refunds policies prior to purchasing.

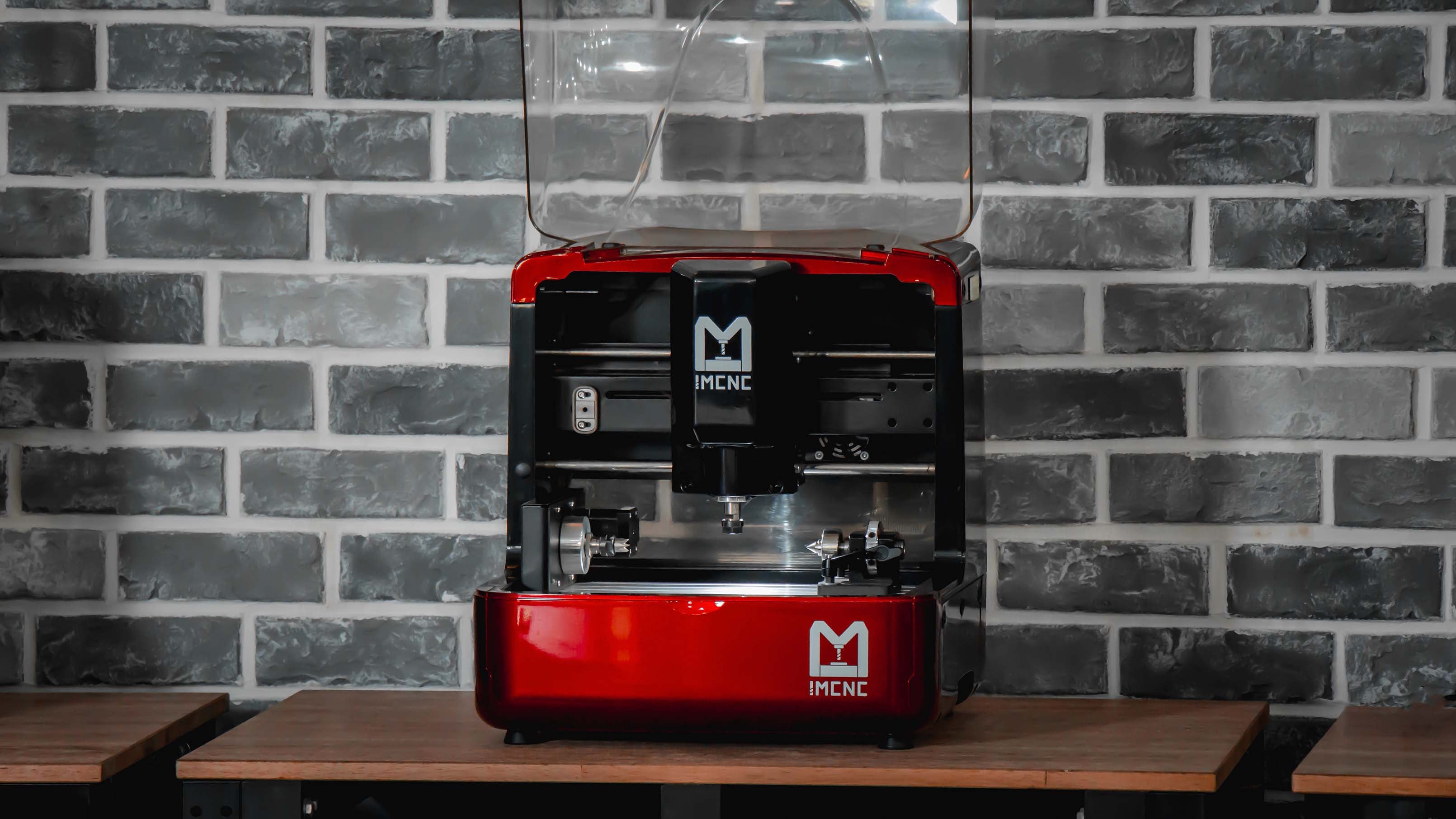

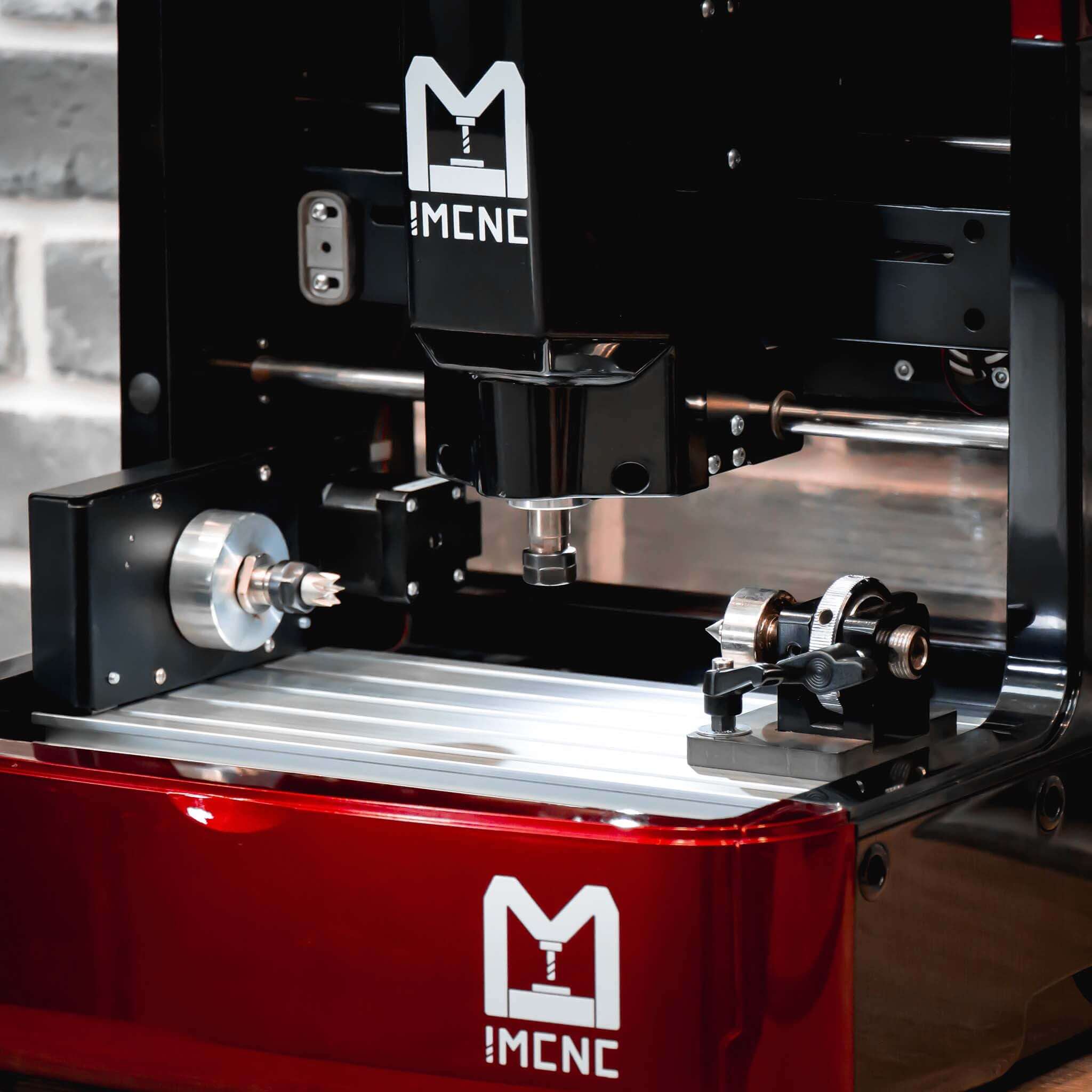

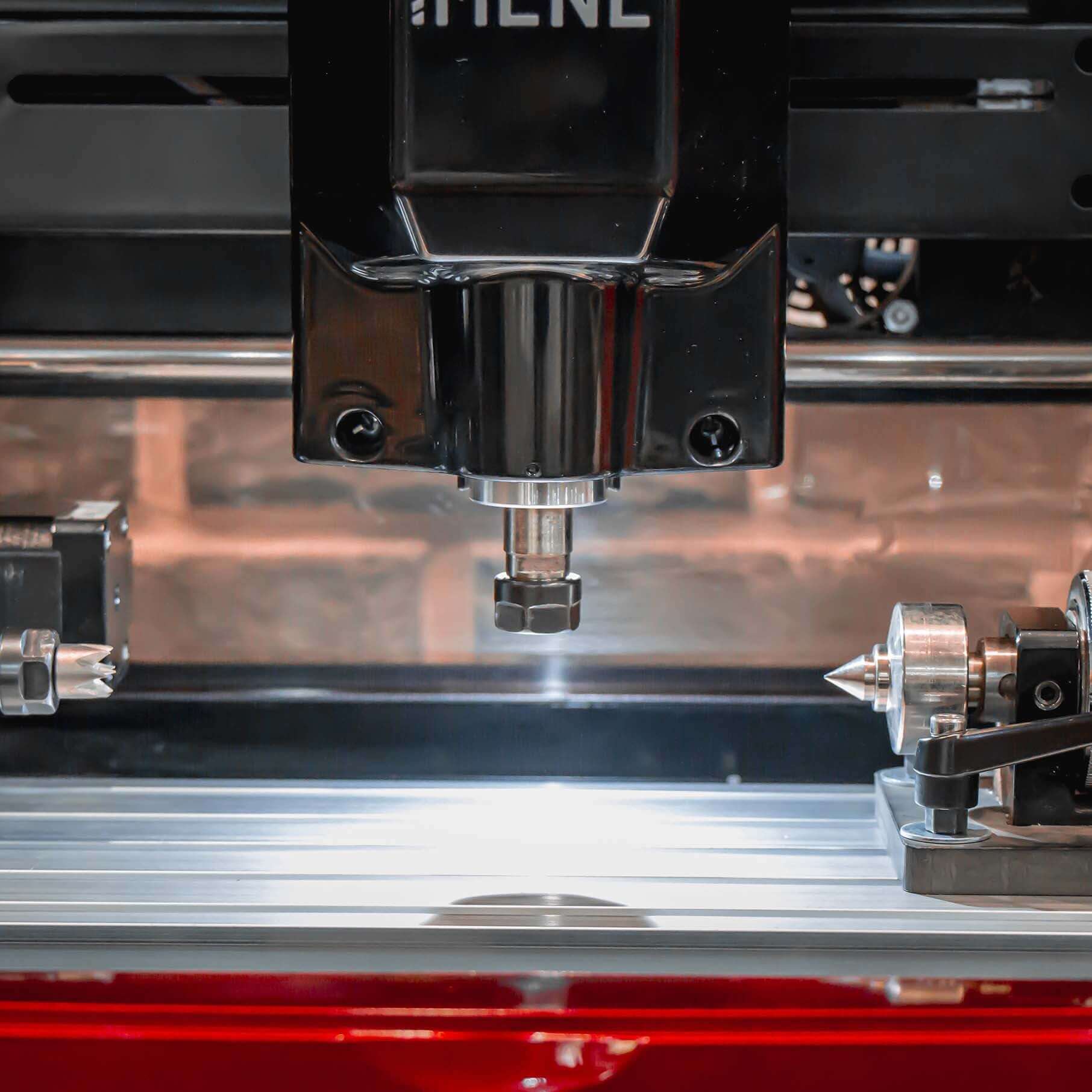

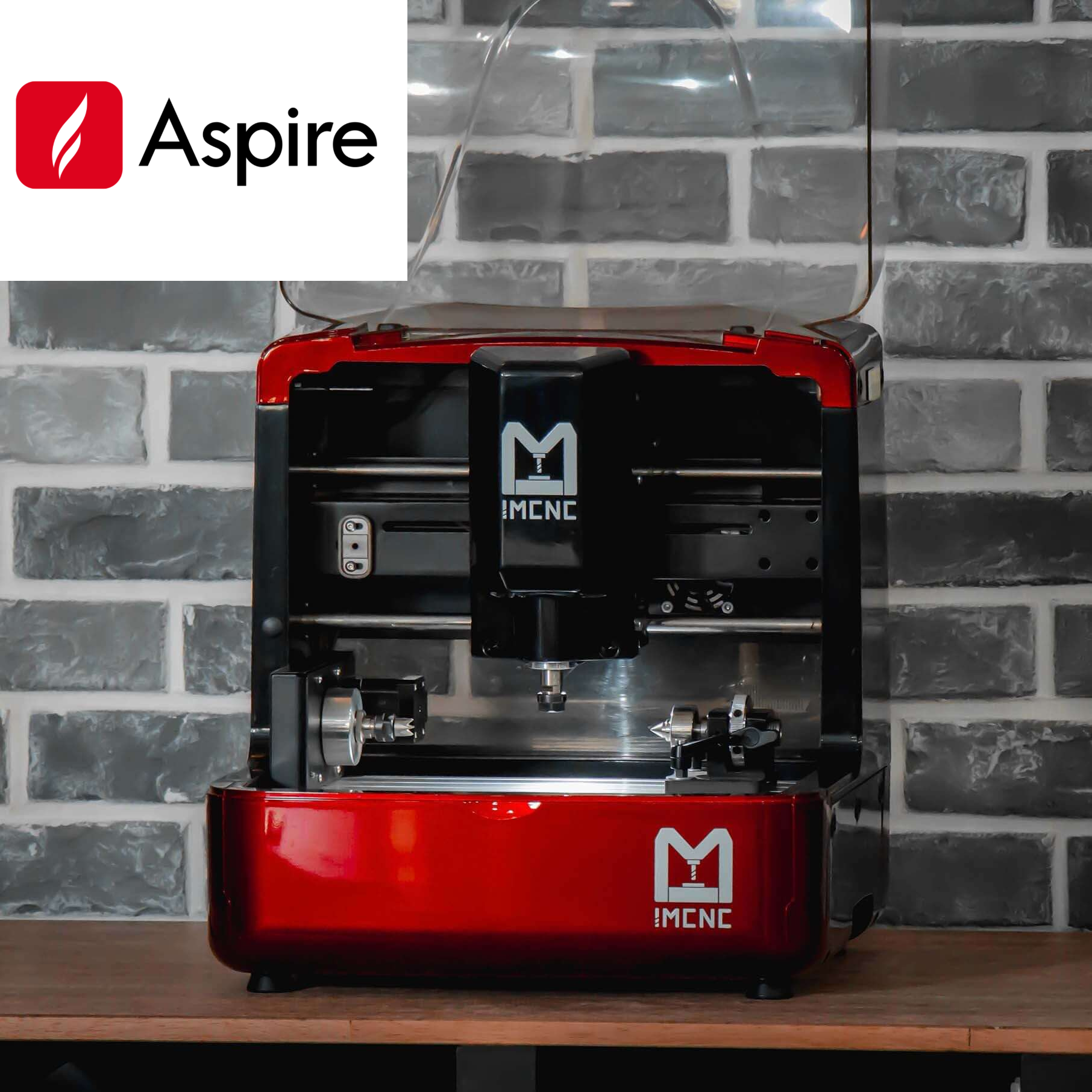

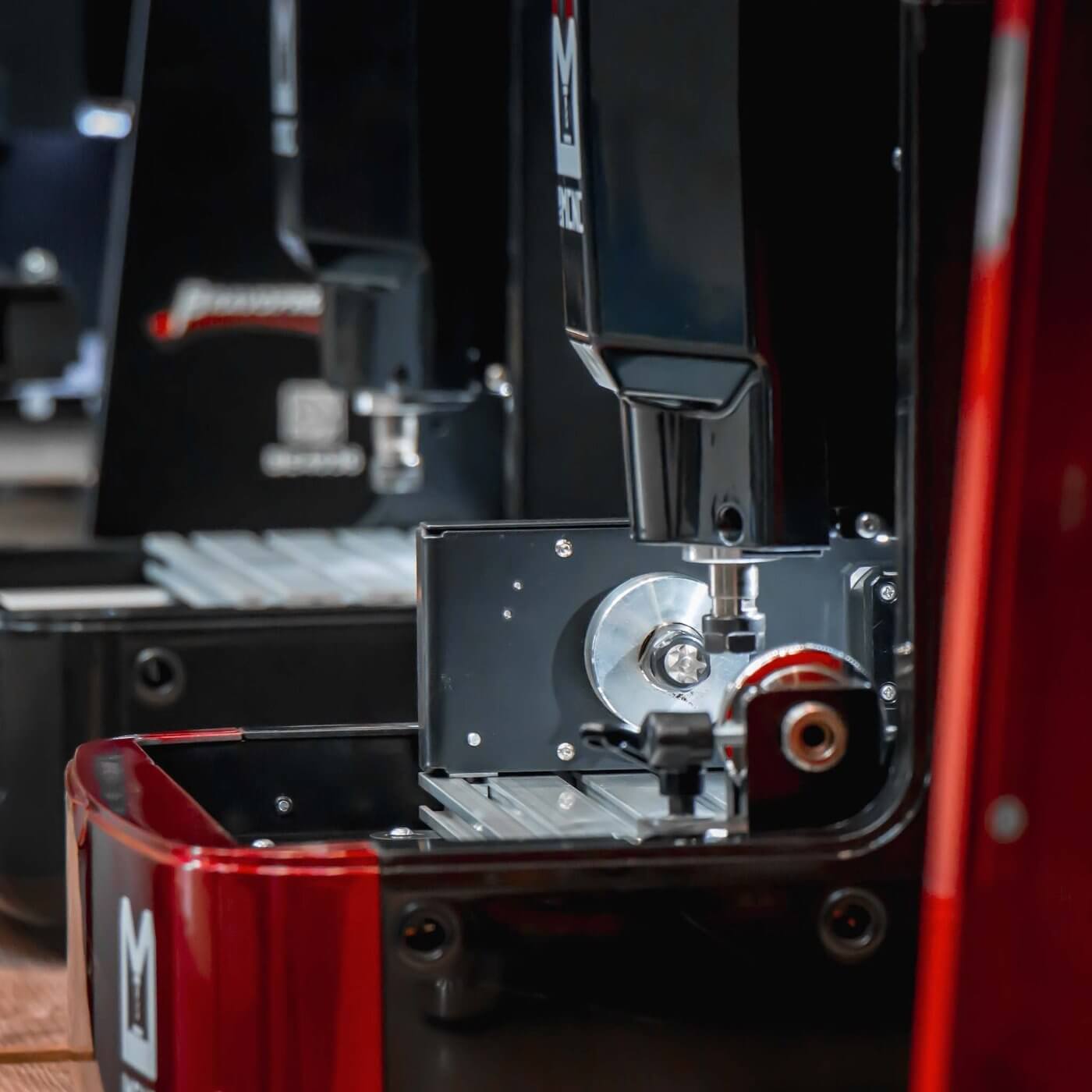

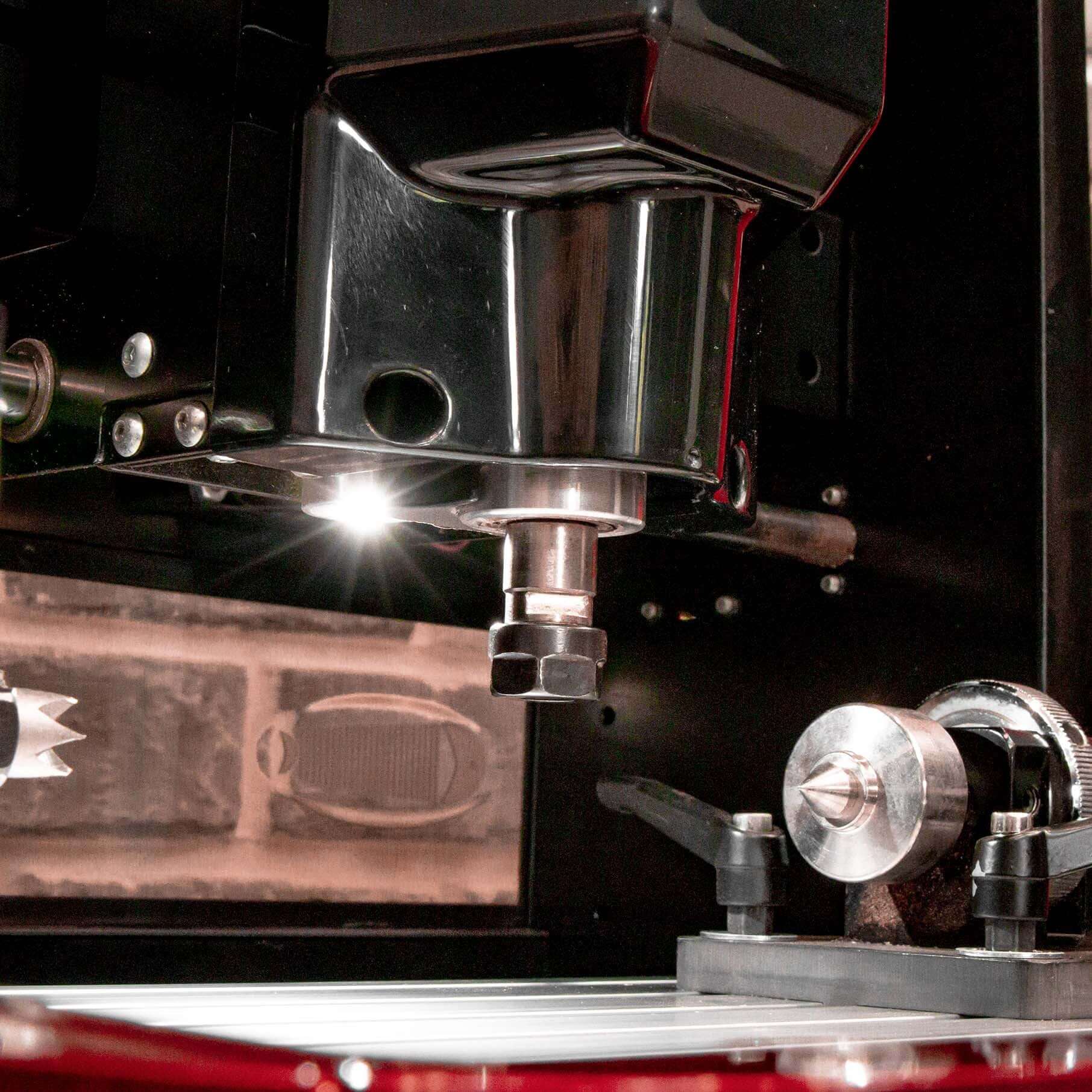

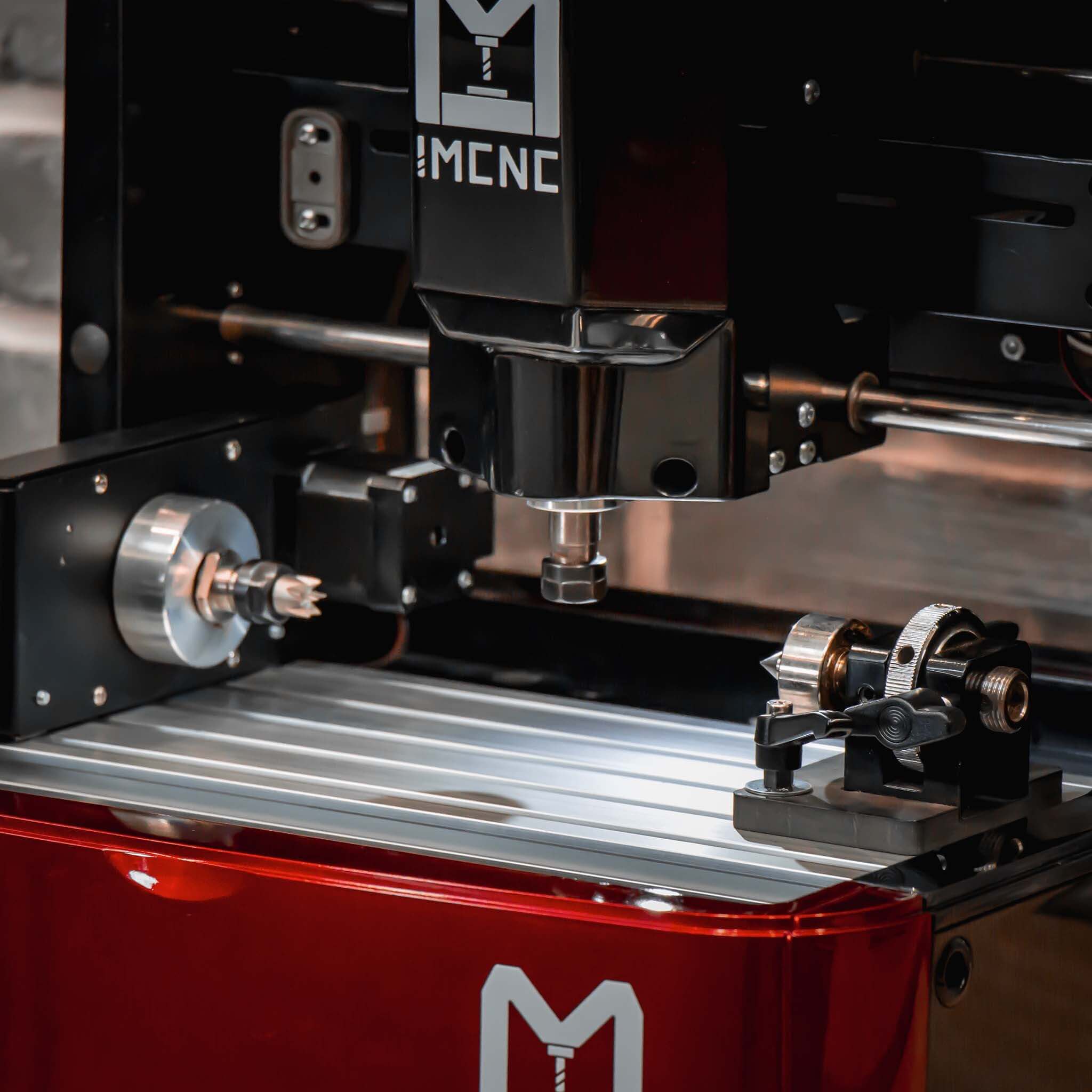

The Desktop rotary CNC router/engraving machine with a rotating axis Y; it is the smallest rotary model in many CNC machines; it has the most compact shape and small size and can be used flexibly in various spaces and environments. It can be used for office, workshop, company, factory, school classroom, etc., which is equipped with functions such as safety, dust prevention, noise reduction, etc. but for the small body can make large-diameter works which is a big breakthrough and can support bitmap files. (such as *.jpg), vector image files (such as *.dxf), 3D model files (such as *.stl), easy for teaching and personal use, it can engrave on materials: acrylic, ABS board, plastic, wood, foam, modeling wax, styrofoam, EVA foam, epoxy, rubber, soft metal, PCB, etc. Make it the mini-rotary CNC router/engraving machine with the highest value.
Mighty mini, Maximum Maker. Mastery mini CNC.
Model | BC100 | |
Max. Loading | Max. 2 kgs | |
Engraving Area | X-Axis: 180 mm | |
Maximum Turning Diameter | Max. ∅75 mm | |
Clamping Tool | Plum Blossom Thimble | |
4-Jaw lathe chuck (Optional) | ||
Max. Engraving Speed | Max. 2500 mm/min | |
Engraving Material | Plastic, Wood, Foam, Modeling wax, Styrene foam, Epoxy tooling board, ABS, MDF board, PVC, POM, Artificial marble, Aluminum plate, Two-color board, Soft metal (Copper, Aluminum, Gold, Silver), etc. | |
Software Resolution | 0.02 mm | |
Mechanical Resolution | 0.02 mm | |
Spindle Motor | 150W Brushless DC Motor | |
Spindle Speed | Max. 20,000 RPM (Adjustable) | |
Tool Diameter | Ø 4 mm | |
Interface | USB | |
Power Supply | 100~120V 50/60HZ | 200~240V 50/60HZ |
Output: DC24V 6.5 A | Output: DC24V 6.5 A | |
Power Consumption | 3.0 A | 2.0 A |
Machine Size | 390 x 400 x 425 mm | |
Net Weight | 16 kgs |
Here are items included with BC100 engraver.
Item | Q'ty | |
1 | Power Cord | 1 |
2 | USB 2.0 Cable | 1 |
3 | Controller ( gamepad ) | 1 |
4 | Wrench Set | 1 |
5 | BravoProdigy CNC Software | 1 |
6 | Touch Plate | 1 |
7 | Fuse | 2 |
8 | 4mm Direct Drive Spindle Set (assembled in the engraver) | 1 |
9 | Bit Set ( 6 pcs in total as below ) | 1 set |
4025A020 0.25R Fine Detail Solid Carbide CNC Bit | ||
4050A020 0.50R Fine Detail Solid Carbide CNC Bit | ||
4050C150 0.50R Tapered Ball Tip Solid Carbide CNC Bit | ||
4100G040 1 mm Single Flute Straight Plunge Solid Carbide CNC Bit | ||
4400H150 4 mm Double Flute Straight Plunge Solid Carbide CNC Bit | ||
4635V030 30° V-Groove Carbide CNC Bits | ||
10 | IMCNC 2-year Limited Warranty | 1 |
